Constructions

Use a ruler and compasses to construct lines and angles accurately.
  Menu   Level 1 Level 2 Level 3 Level 4 Level 5   Exam     Loci     Help     More

This is level 2: Perpendicular through a point on a line. Give your answers in centimetres to one decimal place. Score at least 3 correct answers to earn a trophy. Your measurements can be up to 2 mm from the correct value and still be marked correct and you do this activity online.

1

Draw a horizontal line segment PQ 9.3 cm long near the top of your page.

Mark the point S on PQ such that PS is 3cm.

Construct the perpendicular to PQ which passes through S.

Mark a point R on this perpendicular that is 5 cm below S.

Measure the length of QR.

☐ ☐ ✓ ✗

2

A straight footpath AB is 12.5 cm long on a scale drawing.

Draw a vertical line segment AB 12.5 cm long.

Mark a point T on AB such that AT is 6 cm.

A hedge is to be planted at right angles to the footpath.

Construct the perpendicular to AB through T.

Mark a point H on this perpendicular that is 5 cm to the right of T.

Measure the distance from B to H.

☐ ☐ ✓ ✗

3

A harbour wall LM is shown on a scale drawing.

Draw a vertical line segment LM 11.8 cm long.

Mark a point S on LM such that SM is 5 cm.

A floating pontoon extends at right angles from the wall.

Construct the perpendicular to LM through S.

Mark a point F on this perpendicular that is 9 cm to the left of S.

Measure the distance from L to F.

☐ ☐ ✓ ✗

4

Here is a very useful diagram, first studied by Euclid and later popularised by René Descartes.

Draw a horizontal line segment AB, 9 cm long.

Extend AB to the right to a point C, so that BC is 1 cm.

Using AC as the diameter, construct a semicircle above the line AC.

At the point B, construct the perpendicular to AC. This perpendicular meets the curved edge of the semicircle at D.

Measure the length of BD.

Afterwards, try to figure out why this diagram is particularly useful.

☐ ☐ ✓ ✗

Check

Can you correct your mistakes in order to get full marks?

This is Constructions level 2. You can also try:
Level 1 Level 3 Level 4 Level 5

Instructions

Try your best to answer the questions above. Type your answers into the boxes provided leaving no spaces. As you work through the exercise regularly click the "check" button. If you have any wrong answers, do your best to do corrections but if there is anything you don't understand, please ask your teacher for help.

When you have got all of the questions correct you may want to print out this page and paste it into your exercise book. If you keep your work in an ePortfolio you could take a screen shot of your answers and paste that into your Maths file.
Why am I learning this?

Mathematicians are not the people who find Maths easy; they are the people who enjoy how mystifying, puzzling and hard it is. Are you a mathematician?

Comment recorded on the 6 May 'Starter of the Day' page by Natalie, London:

"I am thankful for providing such wonderful starters. They are of immence help and the students enjoy them very much. These starters have saved my time and have made my lessons enjoyable."

Comment recorded on the 17 November 'Starter of the Day' page by Amy Thay, Coventry:

"Thank you so much for your wonderful site. I have so much material to use in class and inspire me to try something a little different more often. I am going to show my maths department your website and encourage them to use it too. How lovely that you have compiled such a great resource to help teachers and pupils.
Thanks again"

Each month a newsletter is published containing details of the new additions to the Transum website and a new puzzle of the month.

The newsletter is then duplicated as a podcast which is available on the major delivery networks. You can listen to the podcast while you are commuting, exercising or relaxing.

Transum breaking news is available on Twitter @Transum and if that's not enough there is also a Transum Facebook page.
Featured Activity

Car Park Puzzle

Car Park Puzzle

Can you get your car out of the very crowded car park by moving other cars forwards or backwards? There are five levels of increasing difficulty and the interactive interface makes this a fun problem solving exercise.

Answers

There are answers to this exercise but they are available in this space to teachers, tutors and parents who have logged in to their Transum subscription on this computer.

A Transum subscription unlocks the answers to the online exercises, quizzes and puzzles. It also provides the teacher with access to quality external links on each of the Transum Topic pages and the facility to add to the collection themselves.

Subscribers can manage class lists, lesson plans and assessment data in the Class Admin application and have access to reports of the Transum Trophies earned by class members.

If you would like to enjoy ad-free access to the thousands of Transum resources, receive our monthly newsletter, unlock the printable worksheets and see our Maths Lesson Finishers then sign up for a subscription now:

Subscribe

Go Maths

Learning and understanding Mathematics, at every level, requires learner engagement. Mathematics is not a spectator sport. Sometimes traditional teaching fails to actively involve students. One way to address the problem is through the use of interactive activities and this web site provides many of those. The Go Maths page is an alphabetical list of free activities designed for students in Secondary/High school.

Maths Map

Are you looking for something specific? An exercise to supplement the topic you are studying at school at the moment perhaps. Navigate using our Maths Map to find exercises, puzzles and Maths lesson starters grouped by topic.

Teachers

If you found this activity useful don't forget to record it in your scheme of work or learning management system. The short URL, ready to be copied and pasted, is as follows:

Alternatively, if you use Google Classroom, all you have to do is click on the green icon below in order to add this activity to one of your classes.

It may be worth remembering that if Transum.org should go offline for whatever reason, there is a mirror site at Transum.info that contains most of the resources that are available here on Transum.org.

When planning to use technology in your lesson always have a plan B!

Do you have any comments? It is always useful to receive feedback and helps make this free resource even more useful for those learning Mathematics anywhere in the world. Click here to enter your comments.

For Students:



For Teachers:

For All:

Transum.org is a proud supporter of the kidSAFE Seal Program
©1997-2026 WWW.TRANSUM.ORG

© Transum Mathematics 1997-2026
Scan the QR code below to visit the online version of this activity.

This is a QR Code

https://www.Transum.org/go/?Num=403

Description of Levels

Close

❎

Level 1 - Perpendicular bisector

Level 2 - Perpendicular through a point on a line

Level 3 - Perpendicular from a point outside a line

Level 4 - Construct triangles and angle bisectors

Level 5 - Construct triangles and standard-angles

Exam Style Questions - A collection of problems in the style of GCSE or IB/A-level exam paper questions (worked solutions are available for Transum subscribers).

More on this topic including lesson Starters, visual aids, investigations and self-marking exercises.

Loci - including lesson Starters, visual aids and investigations.

Scale Drawings - Use the online tools to measure and construct scale drawings.

Pairs - Match the description of the loci to the diagram of the construction

Answers to this exercise are available lower down this page when you are logged in to your Transum account. If you don’t yet have a Transum subscription one can be very quickly set up if you are a teacher, tutor or parent.

Log in Sign up

Curriculum Reference

See the National Curriculum page for links to related online activities and resources.

Help

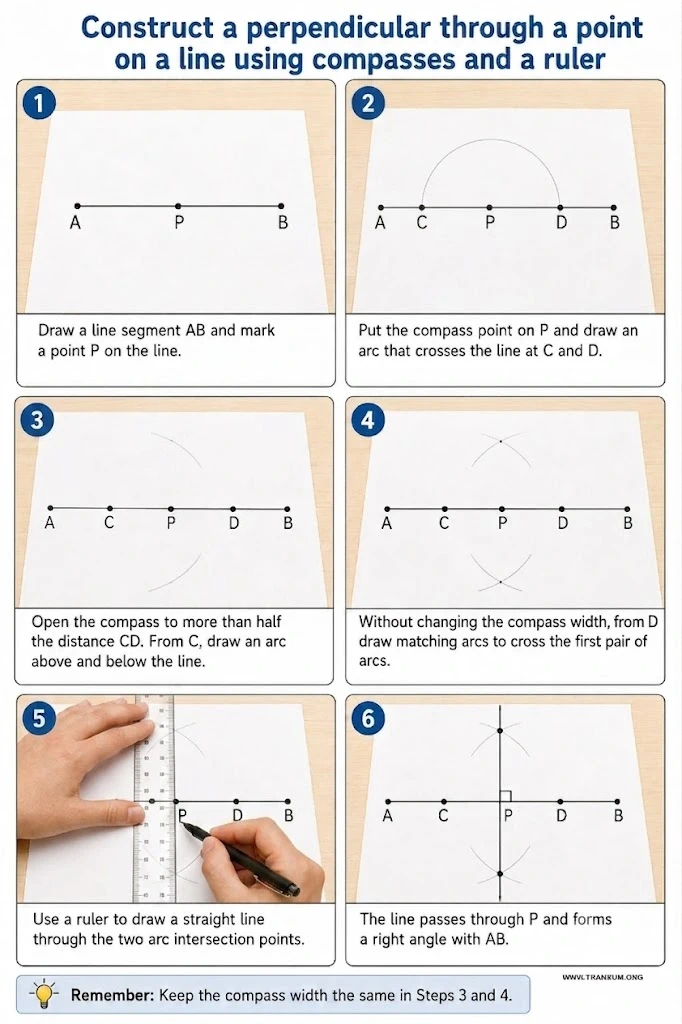

Step-by-step instructions for drawing the perpendicular from a point on the line.
