Volume

Use formulae to solve problems involving the volumes of cuboids, prisms and other common solids.

Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Exam-Style Description Help More...

This is level 4; find the volumes of pyramids, cones, spheres and other common solid shapes. You can earn a trophy if you get at least 7 questions correct and you do this activity online.

1. The length of each side of the square base of the Great Pyramid of Giza is 230m. The height of the pyramid is 147m. Calculate its volume in cubic metres.

Shape1
m3 Correct Wrong

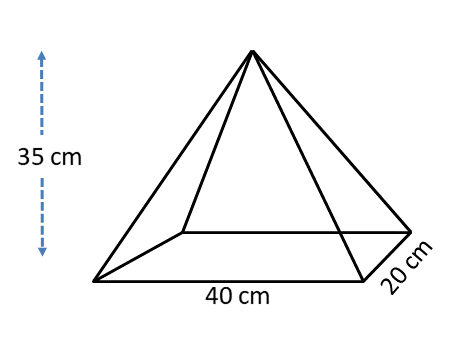

2. The base of the model pyramid shown in this diagram is a 40cm by 20cm rectangle and its height is 35cm. Calculate is volume in cubic centimetres to the nearest cubic centimetre.

Shape2
cm3 Correct Wrong

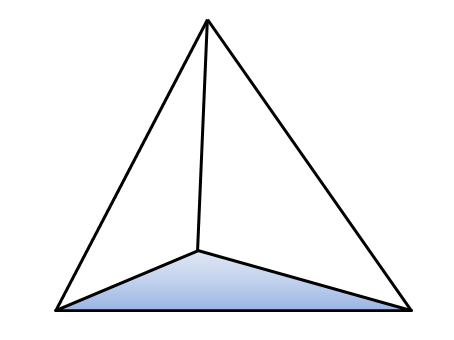

3. A tetrahedron can be thought of as a triangular-based pyramid. Calculate the volume of a tetrahedron if the area of its triangular base is 66cm2 and its height is 7cm.

Shape3
cm3 Correct Wrong

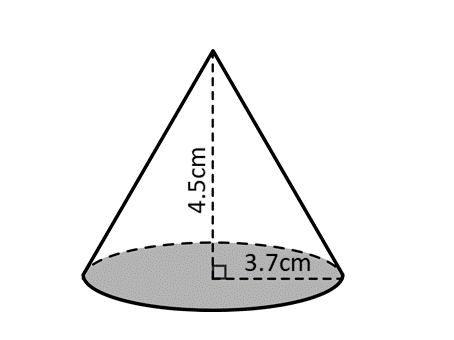

4. A right cone is a cone with its vertex above the center of its base. Calculate the volume of this right cone with a height of 4.5cm and a base radius of 3.7cm giving your answer in cubic centimetres to three significant figures.

Shape4
cm3 Correct Wrong

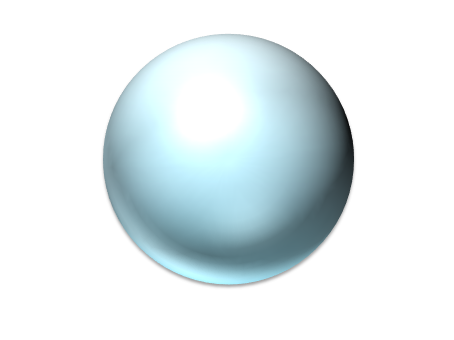

5. Find the volume of a sphere with a radius of 10cm giving your answer in cubic centimetres to three significant figures.

Shape5
cm3 Correct Wrong

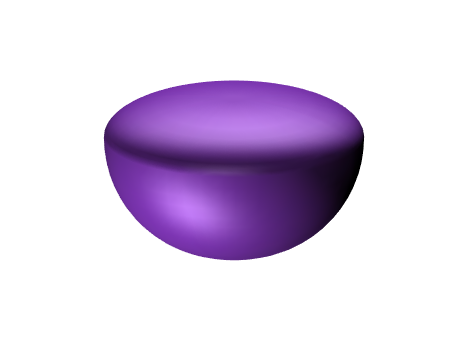

6. A deep sea diver photographed a strange purple blob roughly in the shape of a hemisphere (half of a sphere). Calculate the volume of a hemisphere with a six centimetre diameter. Give your answer in cubic centimetres correct to three significant figures.

Shape6
cm3 Correct Wrong

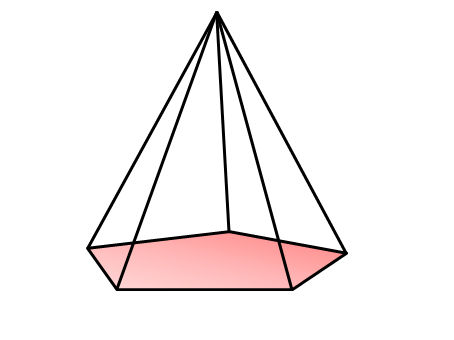

7. Find the volume of a pentagonal based pyramid if the area of the pentagonal base is 33cm2, the vertical height is 6cm and one of the sloping edges is 7cm. Give your answer in cubic centimetres correct to three significant figures.

Shape7
cm3 Correct Wrong

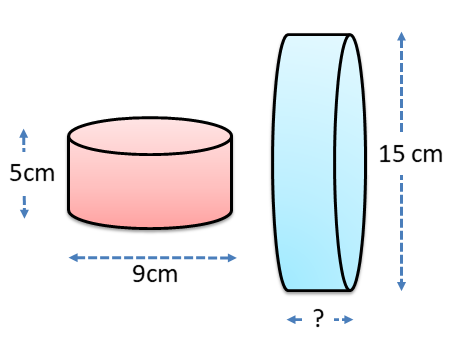

8. Both the cylinders shown in the diagram below have the same volume. Find the width of the blue cylinder

Shape8
cm Correct Wrong

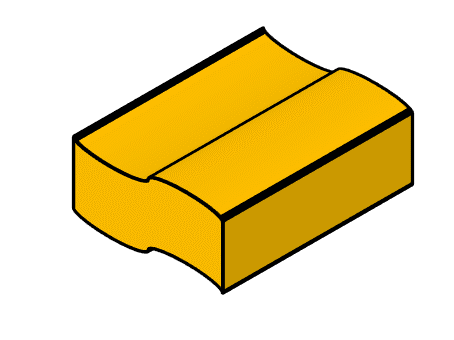

9. A solid shape has a uniform cross section of 50cm2. Its volume is 450cm2. Calculate its length in centimetres.

Shape9
cm Correct Wrong

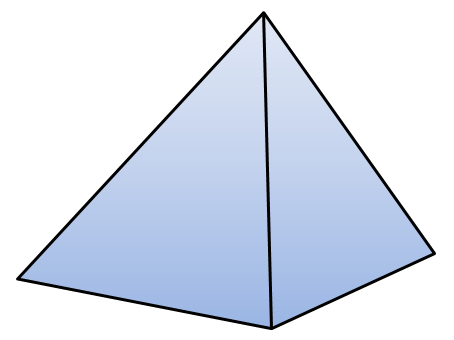

10. The volume of a small, square-based pyramid is one thousand cubic metres. Find the length of one side of its square base if its height is eight metres. Give your answer in metres correct to three significant figures.

Shape10
m Correct Wrong
Check

This is Volume level 4. You can also try:
Level 1 Level 2 Level 3 Level 5 Level 6

Instructions

Try your best to answer the questions above. Type your answers into the boxes provided leaving no spaces. As you work through the exercise regularly click the "check" button. If you have any wrong answers, do your best to do corrections but if there is anything you don't understand, please ask your teacher for help.

When you have got all of the questions correct you may want to print out this page and paste it into your exercise book. If you keep your work in an ePortfolio you could take a screen shot of your answers and paste that into your Maths file.

Transum.org

This web site contains over a thousand free mathematical activities for teachers and pupils. Click here to go to the main page which links to all of the resources available.

Please contact me if you have any suggestions or questions.

Email address

Mathematicians are not the people who find Maths easy; they are the people who enjoy how mystifying, puzzling and hard it is. Are you a mathematician?

Comment recorded on the 10 April 'Starter of the Day' page by Mike Sendrove, Salt Grammar School, UK.:

"A really useful set of resources - thanks. Is the collection available on CD? Are solutions available?"

Comment recorded on the 19 November 'Starter of the Day' page by Lesley Sewell, Ysgol Aberconwy, Wales:

"A Maths colleague introduced me to your web site and I love to use it. The questions are so varied I can use them with all of my classes, I even let year 13 have a go at some of them. I like being able to access the whole month so I can use favourites with classes I see at different times of the week. Thanks."

Featured Activity

23 or Bust

23 or Bust

A game involving mental arithmetic and strategy for two players or one player against the computer. It is possible to beat the computer but you need a well thought out strategy.

Answers

There are answers to this exercise but they are available in this space to teachers, tutors and parents who have logged in to their Transum subscription on this computer.

A Transum subscription unlocks the answers to the online exercises, quizzes and puzzles. It also provides the teacher with access to quality external links on each of the Transum Topic pages and the facility to add to the collection themselves.

Subscribers can manage class lists, lesson plans and assessment data in the Class Admin application and have access to reports of the Transum Trophies earned by class members.

If you would like to enjoy ad-free access to the thousands of Transum resources, receive our monthly newsletter, unlock the printable worksheets and see our Maths Lesson Finishers then sign up for a subscription now:

Subscribe

Go Maths

Learning and understanding Mathematics, at every level, requires learner engagement. Mathematics is not a spectator sport. Sometimes traditional teaching fails to actively involve students. One way to address the problem is through the use of interactive activities and this web site provides many of those. The Go Maths page is an alphabetical list of free activities designed for students in Secondary/High school.

Maths Map

Are you looking for something specific? An exercise to supplement the topic you are studying at school at the moment perhaps. Navigate using our Maths Map to find exercises, puzzles and Maths lesson starters grouped by topic.

Teachers

If you found this activity useful don't forget to record it in your scheme of work or learning management system. The short URL, ready to be copied and pasted, is as follows:

Dan Walker, Twitter

Thursday, January 31, 2019

Do you have any comments? It is always useful to receive feedback and helps make this free resource even more useful for those learning Mathematics anywhere in the world. Click here to enter your comments.

Apple

©1997-2019 WWW.TRANSUM.ORG

© Transum Mathematics :: This activity can be found online at:
www.Transum.org/go/?Num=263

Description of Levels

Close

Close

Level 1 - A basic exercise to find the number of cubes required to make the cuboid shown in the diagram

Level 2 - Use the width times height times length formula to find the volume of cuboids

Level 3 - Find the volumes of a wide range of prisms (including cylinders)

Level 4 - Find the volumes of pyramids, cones, spheres and other common solid shapes

Level 5 - Find the volumes of composite solid objects

Level 6 - Find the volumes of solid objects where the units of the dimensions may differ

Surface Area - Exercises on finding the surface area of solids

Cylinders - Apply formulae for the volumes and surface areas of cylinders

Exam Style Questions - A collection of problems in the style of GCSE or IB/A-level exam paper questions (worked solutions are available for Transum subscribers).

More on this topic including lesson Starters, visual aids, investigations and self-marking exercises.

Answers to this exercise are available lower down this page when you are logged in to your Transum account. If you don’t yet have a Transum subscription one can be very quickly set up if you are a teacher, tutor or parent.

Log in Sign up

Curriculum Reference

See the National Curriculum page for links to related online activities and resources.

Volume Formulas

Cube: \(s^3\) where \(s\) is the length of one edge.

Cuboid: \(l\times w\times h\) where \(l\) is the length, \(w\) is the width and \(h\) is the height of the cuboid.

Cylinder: \(h \times \pi r^2\) where \(h\) is the height (or length) of the cylinder and \(r\) is the radius of the circular end.

Cone: \(h \times \frac13 \pi r^2\) where \(h\) is the height of the cone and \(r\) is the radius of the circular base.

Square based pyramid: \(h \times \frac13 s^2\) where \(h\) is the height of the pyramid and s is the length of a side of the square base.

Sphere: \(\frac43 \pi r^3\) where \(r\) is the radius of the sphere.

Prism: Area of the cross section multiplied by the length of the prism.
