Use formulae to solve problems involving the volumes of cuboids, prisms and other common solids.

Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Exam-Style Description Help More...

This is level 3; find the volumes of a wide range of prisms (including cylinders). You can earn a trophy if you get at least 7 questions correct and you do this activity online.

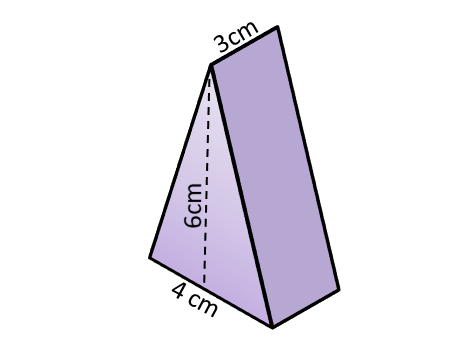

1. Find the volume of the triangular prism. The base of the triangle is 4cm and the height of the triangle is 6cm. The length of the prism is 3cm.

Shape1
cm3 Correct Wrong

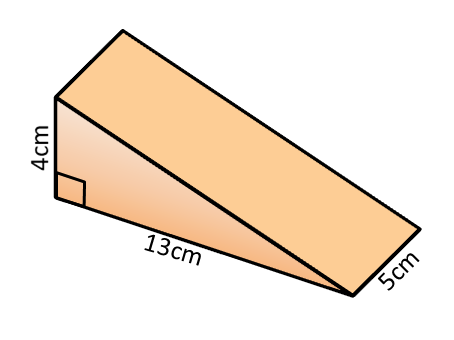

2. Find the volume of the triangular prism. The triangular end of the prism is a right-angled triangle.

Shape2
cm3 Correct Wrong

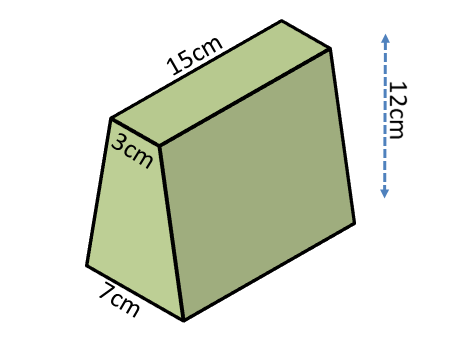

3. The cross section of this prism is in the shape of a trapezium. Find its volume.

Shape3
cm3 Correct Wrong

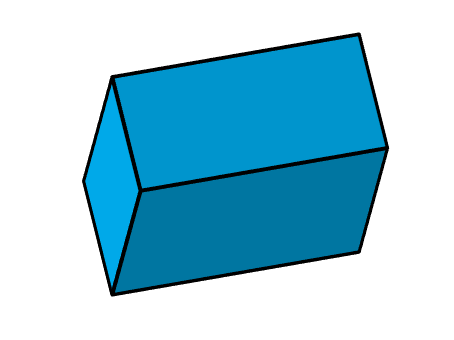

4. The cross section of this prism is a rhombus with an area of 24cm2. Find the volume of the prism if its length is 10cm.

Shape4
cm3 Correct Wrong

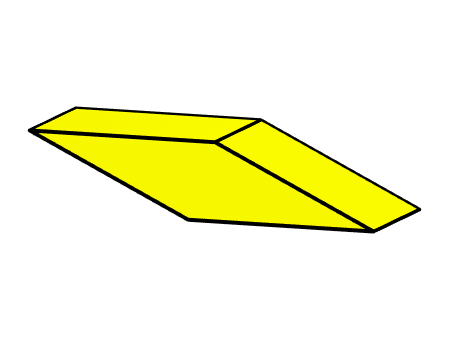

5. The cross section of this prism is a parallelogram with one pair of opposite sides 8cm long and 4cm apart. Find the volume of the prism if its length is 1.2cm.

Shape5
cm3 Correct Wrong

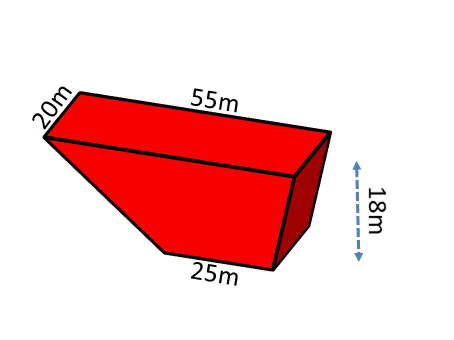

6. Find the volume of the large water tank given that it is a trapezoidal prism with the given dimensions.

Shape6
m3 Correct Wrong

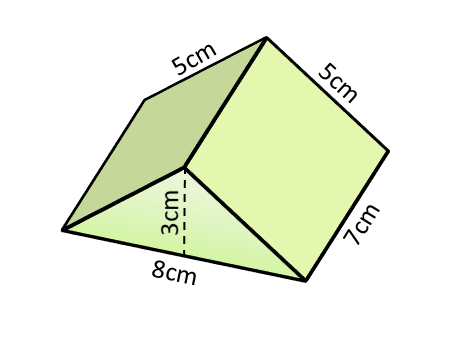

7. Find the volume of this triangular prism

Shape7
cm3 Correct Wrong

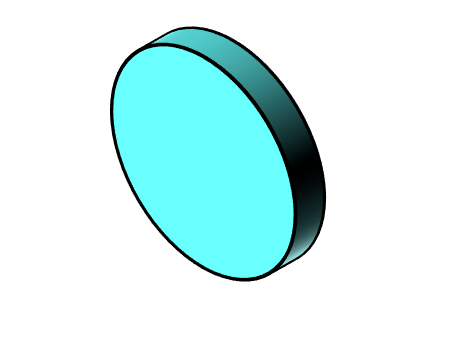

8. Find the volume of this cylinder if its radius is 10cm and its depth is 2cm. Give your answer to three significant figures.

Shape8
cm3 Correct Wrong

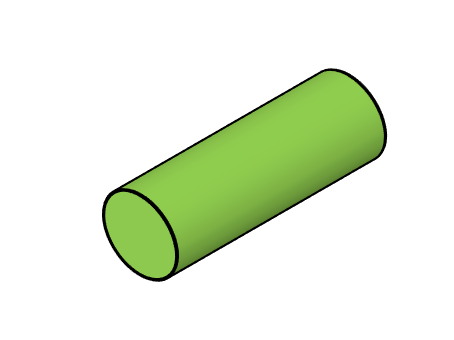

9. Find the volume of this cylinder if its diameter is 3cm and its length is 11cm. Give your answer to three significant figures.

Shape9
cm3 Correct Wrong

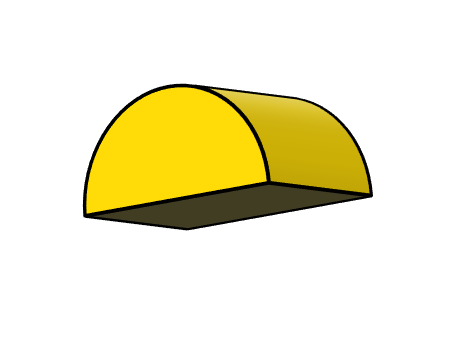

10. Find the volume of this simi-circular prism which has a diameter of 12cm and a length of 8cm. Give your answer to three significant figures.

Shape10
cm3 Correct Wrong
Check

This is Volume level 3. You can also try:
Level 1 Level 2 Level 4 Level 5 Level 6

Instructions

Try your best to answer the questions above. Type your answers into the boxes provided leaving no spaces. As you work through the exercise regularly click the "check" button. If you have any wrong answers, do your best to do corrections but if there is anything you don't understand, please ask your teacher for help.

When you have got all of the questions correct you may want to print out this page and paste it into your exercise book. If you keep your work in an ePortfolio you could take a screen shot of your answers and paste that into your Maths file.

Transum.org

This web site contains over a thousand free mathematical activities for teachers and pupils. Click here to go to the main page which links to all of the resources available.

Please contact me if you have any suggestions or questions.

Email address

Mathematicians are not the people who find Maths easy; they are the people who enjoy how mystifying, puzzling and hard it is. Are you a mathematician?

Comment recorded on the 16 March 'Starter of the Day' page by Mrs A Milton, Ysgol Ardudwy:

"I have used your starters for 3 years now and would not have a lesson without one! Fantastic way to engage the pupils at the start of a lesson."

Comment recorded on the 9 April 'Starter of the Day' page by Jan, South Canterbury:

"Thank you for sharing such a great resource. I was about to try and get together a bank of starters but time is always required elsewhere, so thank you."

Featured Activity

Bidmaze

Bidmaze

Find your way through the maze encountering mathematical operations in the correct order to achieve the given total. This is an addictive challenge that begins easy but develops into quite a difficult puzzle.

Answers

There are answers to this exercise but they are available in this space to teachers, tutors and parents who have logged in to their Transum subscription on this computer.

A Transum subscription unlocks the answers to the online exercises, quizzes and puzzles. It also provides the teacher with access to quality external links on each of the Transum Topic pages and the facility to add to the collection themselves.

Subscribers can manage class lists, lesson plans and assessment data in the Class Admin application and have access to reports of the Transum Trophies earned by class members.

If you would like to enjoy ad-free access to the thousands of Transum resources, receive our monthly newsletter, unlock the printable worksheets and see our Maths Lesson Finishers then sign up for a subscription now:

Subscribe

Go Maths

Learning and understanding Mathematics, at every level, requires learner engagement. Mathematics is not a spectator sport. Sometimes traditional teaching fails to actively involve students. One way to address the problem is through the use of interactive activities and this web site provides many of those. The Go Maths page is an alphabetical list of free activities designed for students in Secondary/High school.

Maths Map

Are you looking for something specific? An exercise to supplement the topic you are studying at school at the moment perhaps. Navigate using our Maths Map to find exercises, puzzles and Maths lesson starters grouped by topic.

Teachers

If you found this activity useful don't forget to record it in your scheme of work or learning management system. The short URL, ready to be copied and pasted, is as follows:

Dan Walker, Twitter

Thursday, January 31, 2019

Do you have any comments? It is always useful to receive feedback and helps make this free resource even more useful for those learning Mathematics anywhere in the world. Click here to enter your comments.

Apple

©1997-2019 WWW.TRANSUM.ORG

© Transum Mathematics :: This activity can be found online at:
www.Transum.org/go/?Num=263

Description of Levels

Close

Close

Level 1 - A basic exercise to find the number of cubes required to make the cuboid shown in the diagram

Level 2 - Use the width times height times length formula to find the volume of cuboids

Level 3 - Find the volumes of a wide range of prisms (including cylinders)

Level 4 - Find the volumes of pyramids, cones, spheres and other common solid shapes

Level 5 - Find the volumes of composite solid objects

Level 6 - Find the volumes of solid objects where the units of the dimensions may differ

Surface Area - Exercises on finding the surface area of solids

Cylinders - Apply formulae for the volumes and surface areas of cylinders

Exam Style Questions - A collection of problems in the style of GCSE or IB/A-level exam paper questions (worked solutions are available for Transum subscribers).

More on this topic including lesson Starters, visual aids, investigations and self-marking exercises.

Answers to this exercise are available lower down this page when you are logged in to your Transum account. If you don’t yet have a Transum subscription one can be very quickly set up if you are a teacher, tutor or parent.

Log in Sign up

Curriculum Reference

See the National Curriculum page for links to related online activities and resources.

Volume Formulas

Cube: \(s^3\) where \(s\) is the length of one edge.

Cuboid: \(l\times w\times h\) where \(l\) is the length, \(w\) is the width and \(h\) is the height of the cuboid.

Cylinder: \(h \times \pi r^2\) where \(h\) is the height (or length) of the cylinder and \(r\) is the radius of the circular end.

Cone: \(h \times \frac13 \pi r^2\) where \(h\) is the height of the cone and \(r\) is the radius of the circular base.

Square based pyramid: \(h \times \frac13 s^2\) where \(h\) is the height of the pyramid and s is the length of a side of the square base.

Sphere: \(\frac43 \pi r^3\) where \(r\) is the radius of the sphere.

Prism: Area of the cross section multiplied by the length of the prism.
