# Histograms

## Practise drawing and reading information from histograms displaying grouped data

##### Level 1Level 2Level 3Level 4Level 5Exam-StyleDescriptionHelpMore Statistics

This is level 1: show the height of one bar in an almost-complete histogram with fixed class intervals. You can earn a trophy if you get at least 4 questions correct and you do this activity online.

1) This histogram shows the height of sunflowers in Julie's garden. Drag the first bar to show a frequency of 8 for the shortest group of sunflowers.

100

120

140

160

180

200

1 -

2 -

3 -

4 -

5 -

6 -

7 -

8 -

9 -

Heights of sunflowers in centimetres

2) In an animal sanctuary the birds were weighed and the data is shown in the histogram below. There were 10 birds weighing between 450g and 500g. Adjust the height of the last bar of this histogram to show this information.

200

250

300

350

400

450

500

1 -

2 -

3 -

4 -

5 -

6 -

7 -

8 -

9 -

10 -

Weights of birds in grams

3) This table and histogram below show the speed of cars passing Julie's house one morning. Drag the third bar to show the frequency of cars travelling between twenty and thirty miles per hour.

 Speed (s) mph 0 < s ≤ 10 10 < s ≤ 20 20 < s ≤ 30 30 < s ≤ 40 40 < s ≤ 50 50 < s ≤ 60 Number of cars 4 10 5 4 4 3

0

10

20

30

40

50

60

1 -

2 -

3 -

4 -

5 -

6 -

7 -

8 -

9 -

10 -

11 -

12 -

Speeds of cars in miles per hour

4) The Friday Allotment Coffee Club has exactly 40 members between the ages of twenty and a hundred. Drag the bar for the 70 to 80 age group to complete the histogram.

20

30

40

50

60

70

80

90

100

1 -

2 -

3 -

4 -

5 -

6 -

7 -

8 -

Ages of Club Members

5) Jason keeps a record of how many kilometers he cycles each day. The histogram shows the data he has collected so far. He was surprised to realise that on a total of 30 days he cycled more than 21 kilometres. Adjust the height of the last bar of the histogram to show this information.

0

3

6

9

12

15

18

21

24

27

30

1 -

2 -

3 -

4 -

5 -

6 -

7 -

8 -

9 -

10 -

11 -

12 -

13 -

14 -

15 -

Distance cycled in kilometres

Check

This is Histograms level 1. You can also try:
Level 2 Level 3 Level 4 Level 5

## Instructions

Try your best to answer the questions above. Type your answers into the boxes provided leaving no spaces. As you work through the exercise regularly click the "check" button. If you have any wrong answers, do your best to do corrections but if there is anything you don't understand, please ask your teacher for help.

When you have got all of the questions correct you may want to print out this page and paste it into your exercise book. If you keep your work in an ePortfolio you could take a screen shot of your answers and paste that into your Maths file.

## More Activities:

Mathematicians are not the people who find Maths easy; they are the people who enjoy how mystifying, puzzling and hard it is. Are you a mathematician?

Comment recorded on the 25 June 'Starter of the Day' page by Inger.kisby@herts and essex.herts.sch.uk, :

"We all love your starters. It is so good to have such a collection. We use them for all age groups and abilities. Have particularly enjoyed KIM's game, as we have not used that for Mathematics before. Keep up the good work and thank you very much
Best wishes from Inger Kisby"

Comment recorded on the 1 August 'Starter of the Day' page by Peter Wright, St Joseph's College:

"Love using the Starter of the Day activities to get the students into Maths mode at the beginning of a lesson. Lots of interesting discussions and questions have arisen out of the activities.
Thanks for such a great resource!"

Each month a newsletter is published containing details of the new additions to the Transum website and a new puzzle of the month.

The newsletter is then duplicated as a podcast which is available on the major delivery networks. You can listen to the podcast while you are commuting, exercising or relaxing.

Transum breaking news is available on Twitter @Transum and if that's not enough there is also a Transum Facebook page.

##### Featured Activity

The Transum Newsletter for August 2024 has just been published. Click on the image above to read about the latest developments on this site and try to solve the puzzle of the month. You can read the newsletter online or listen to it by downloading the podcast.

There are answers to this exercise but they are available in this space to teachers, tutors and parents who have logged in to their Transum subscription on this computer.

A Transum subscription unlocks the answers to the online exercises, quizzes and puzzles. It also provides the teacher with access to quality external links on each of the Transum Topic pages and the facility to add to the collection themselves.

Subscribers can manage class lists, lesson plans and assessment data in the Class Admin application and have access to reports of the Transum Trophies earned by class members.

Subscribe

## Go Maths

Learning and understanding Mathematics, at every level, requires learner engagement. Mathematics is not a spectator sport. Sometimes traditional teaching fails to actively involve students. One way to address the problem is through the use of interactive activities and this web site provides many of those. The Go Maths page is an alphabetical list of free activities designed for students in Secondary/High school.

## Maths Map

Are you looking for something specific? An exercise to supplement the topic you are studying at school at the moment perhaps. Navigate using our Maths Map to find exercises, puzzles and Maths lesson starters grouped by topic.

## Teachers

If you found this activity useful don't forget to record it in your scheme of work or learning management system. The short URL, ready to be copied and pasted, is as follows:

Alternatively, if you use Google Classroom, all you have to do is click on the green icon below in order to add this activity to one of your classes.

It may be worth remembering that if Transum.org should go offline for whatever reason, there is a mirror site at Transum.info that contains most of the resources that are available here on Transum.org.

When planning to use technology in your lesson always have a plan B!

Ella Chandler, England

Saturday, December 11, 2021

"Level 1 and 2 of the 'Histogram' activity are incorrect, they show and ask questions about bar charts but refer to them as histograms when the y-axis is clearly labelled frequency, not frequency density. This is a shame as I find these activities very useful with my students and am sad to not have an activity I can with them for this topic.

[Transum: Thank you for your feedback Ella. The definitions of a histogram that I have read do not stipulate that the y-axis should represent frequency density unless the groups (bins) are not all the same width.]"

Do you have any comments? It is always useful to receive feedback and helps make this free resource even more useful for those learning Mathematics anywhere in the world. Click here to enter your comments.

For Students:

For All:

© Transum Mathematics :: This activity can be found online at:
www.Transum.org/go/?Num=820

## Description of Levels

Close

Reading Graphs and Charts - Answer real-life problems from different types of graphs and charts including piece-wise linear graphs.

Level 1 - Show the height of one bar in an almost-complete histogram with fixed class intervals

Level 2 - Read information from histograms with fixed class intervals

Level 3 - Complete a frequency table with information from a histogram with unequal class intervals

Level 4 - Complete a frequency table with information from a histogram showing frequency density

Level 5 - General questions about histograms with varying class widths

Exam Style Questions - A collection of problems in the style of GCSE or IB/A-level exam paper questions (worked solutions are available for Transum subscribers).

More on this topic including lesson Starters, visual aids, investigations and self-marking exercises.

Answers to this exercise are available lower down this page when you are logged in to your Transum account. If you don’t yet have a Transum subscription one can be very quickly set up if you are a teacher, tutor or parent.

## Curriculum Reference

See the National Curriculum page for links to related online activities and resources.

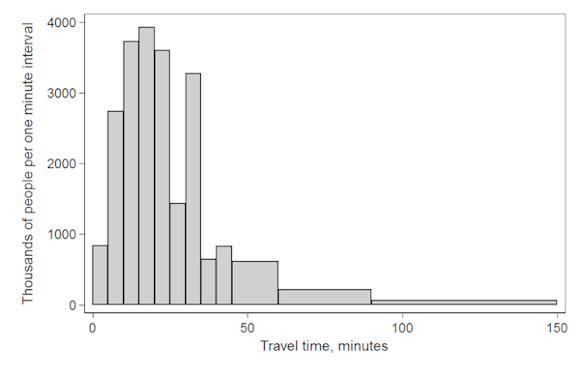

## Histograms

Histograms are similar to bar charts but there is one important difference. It is the area of the bars in a histogram that is proportional to the frequency rather than the height.

The first couple of levels of this exercise features histograms with equal class widths which means the heights of the bars can be conveniently used to find the frequency.

Levels 3 onwards contain histograms with unequal class widths so the vertical axis can be thought of as the frequency density.

Frequency = Frequency density × Class Width

Histograms can be used to represent both discrete and continuous data but they are typically used for displaying continuous data.

To draw a histogram, the data first needs to be assigned to a number of different groups (classes or bins). There are various theories concerning how many of these groups there should be but the normal is between five and twenty depending on the amount of data. A number of consecutive groups containing very little data may be merged into a single group.
