# Similar Shapes

## Questions about the scale factors of lengths, areas and volumes of similar shapes.

##### Menu  Level 1Level 2Level 3Level 4ExamPuzzleHelpMore

This is level 4; Mixed questions. You can earn a trophy if you get at least 7 questions correct.

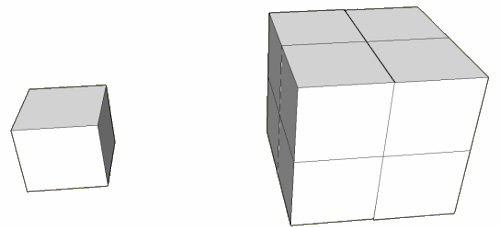

 1. The statue of a cat is 123cm tall which is three times bigger than the actual cat which was used as the model. How tall is the real cat? Working: cm 2. A rectangle has an area of 20cm2. A second rectangle is similar to the first but its dimensions are three times bigger. What is the area of the second rectangle? Working: cm2 3. A box has a surface area of 600cm2. A second box is 2 times as wide,2 times as long and 2 times as tall. What is the surface area of the second box? Working: cm2 4. The smaller box shown above has a volume of 1000cm3. What is the volume of the second box given that its dimensions are twice the first box's? Working: cm3 5. The volume of a large bottle of wine is 6400ml. A minature bottle is similar to the large bottle but its dimensions are four times smaller. What is the volume of the smaller bottle? Working: ml 6. The area of a piece of land is 101.08m2. The same piece of land is shown on a map by an area of 28cm2. How long would a footpath be if on the map it is 11cm long? Working: m 7. A real bus is seventeen times as long as a model which was used in the design process. All of the other dimensions are in proportion. The area of the glass in the windows of the model is 2m2. What is the area of the glass in the real bus? Working: m2 8. The capacity of the fuel tank of the real bus mentioned above is 88434cc. What is the capacity of the fuel tank on the model? Working: cc 9. The model bus has five tyres (including the spare). How many tyres does the real bus have? Working: tyres 10. In a triangle ABC, D is a point on the line AC and E is a point on the line AB. A straight line connects D and E and is parallel to CB. Sketch the diagram and mark the following lengths:DE is 4cm,AE is 1cm longer than DE,DC is 1cm shorter than DE,CB is 4cm longer than DC.The two triangles in the diagram are similar. What is area of the larger triangle (to the nearest whole number of square centimetres) if the area of the smaller triangle is 7.81cm2? Working: cm2
Check

This is Similar Shapes level 4. You can also try:
Level 1 Level 2 Level 3

## Instructions

Try your best to answer the questions above. Type your answers into the boxes provided leaving no spaces. As you work through the exercise regularly click the "check" button. If you have any wrong answers, do your best to do corrections but if there is anything you don't understand, please ask your teacher for help.

When you have got all of the questions correct you may want to print out this page and paste it into your exercise book. If you keep your work in an ePortfolio you could take a screen shot of your answers and paste that into your Maths file.

## More Activities:

Mathematicians are not the people who find Maths easy; they are the people who enjoy how mystifying, puzzling and hard it is. Are you a mathematician?

Comment recorded on the 28 May 'Starter of the Day' page by L Smith, Colwyn Bay:

"An absolutely brilliant resource. Only recently been discovered but is used daily with all my classes. It is particularly useful when things can be saved for further use. Thank you!"

Comment recorded on the 2 April 'Starter of the Day' page by Mrs Wilshaw, Dunsten Collage,Essex:

"This website was brilliant. My class and I really enjoy doing the activites."

Each month a newsletter is published containing details of the new additions to the Transum website and a new puzzle of the month.

The newsletter is then duplicated as a podcast which is available on the major delivery networks. You can listen to the podcast while you are commuting, exercising or relaxing.

Transum breaking news is available on Twitter @Transum and if that's not enough there is also a Transum Facebook page.

#### Remainder Race

A brilliant game involving chance and choice requiring an ability to calculate the remainder when a two digit number is divided by a single digit number. There are one and two player versions and the rules are inspired by the Royal Game of Ur.

There are answers to this exercise but they are available in this space to teachers, tutors and parents who have logged in to their Transum subscription on this computer.

A Transum subscription unlocks the answers to the online exercises, quizzes and puzzles. It also provides the teacher with access to quality external links on each of the Transum Topic pages and the facility to add to the collection themselves.

Subscribers can manage class lists, lesson plans and assessment data in the Class Admin application and have access to reports of the Transum Trophies earned by class members.

Subscribe

## Go Maths

Learning and understanding Mathematics, at every level, requires learner engagement. Mathematics is not a spectator sport. Sometimes traditional teaching fails to actively involve students. One way to address the problem is through the use of interactive activities and this web site provides many of those. The Go Maths page is an alphabetical list of free activities designed for students in Secondary/High school.

## Maths Map

Are you looking for something specific? An exercise to supplement the topic you are studying at school at the moment perhaps. Navigate using our Maths Map to find exercises, puzzles and Maths lesson starters grouped by topic.

## Teachers

If you found this activity useful don't forget to record it in your scheme of work or learning management system. The short URL, ready to be copied and pasted, is as follows:

Alternatively, if you use Google Classroom, all you have to do is click on the green icon below in order to add this activity to one of your classes.

It may be worth remembering that if Transum.org should go offline for whatever reason, there is a mirror site at Transum.info that contains most of the resources that are available here on Transum.org.

When planning to use technology in your lesson always have a plan B!

Do you have any comments? It is always useful to receive feedback and helps make this free resource even more useful for those learning Mathematics anywhere in the world. Click here to enter your comments.

For Students:

For All:

Scan the QR code below to visit the online version of this activity.

https://www.Transum.org/go/?Num=181

## Description of Levels

Close

Level 1 - Lengths of similar shapes

Level 2 - Areas of similar shapes

Level 3 - Volumes of similar shapes

Level 4 - Mixed questions

Exam Style Questions - A collection of problems in the style of GCSE or IB/A-level exam paper questions (worked solutions are available for Transum subscribers).

Similar Parts Puzzle - Use the colours to dissect the outlines into similar parts.

More on Enlargements including lesson Starters, visual aids, investigations and self-marking exercises.

Square in Rectangle - An advanced lesson Starter.

Answers to this exercise are available lower down this page when you are logged in to your Transum account. If you donâ€™t yet have a Transum subscription one can be very quickly set up if you are a teacher, tutor or parent.

## Curriculum Reference

See the National Curriculum page for links to related online activities and resources.

## Enlargements

If you enlarge the dimensions of a polygon by multiplying them by a number (scale factor), the area is increased by the square of that factor.

For example if the sides of a rectangle are enlarged by a factor of 6, the area of the rectangle increases by a factor of 62

If the length of the original rectangle was 5cm and the width was 2cm then after enlargement they would be 30cm and 12cm respectively.

The area of the original rectangle is 5cm x 2cm = 10cm2

The area of the enlarged rectangle is 30cm x 12cm = 360cm2

As you can see the area of the enlarged rectangle is 62 times larger than the area of the original rectangle.

The same can be shown for any polygon when enlarged.

Enlargement by a fractional scale factor is equivalent to the shape reducing in size.

If you enlarge the dimensions of a three dimensional shape by a scale factor, the volume is increased by the cube of that factor.

For example if the sides of a cuboid are enlarged by a factor of 6, the volume of the cuboid increases by a factor of 63
