This is level 3; Find the surface area of a variety of prisms. The diagrams are not to scale except the diagram in the last question.

1

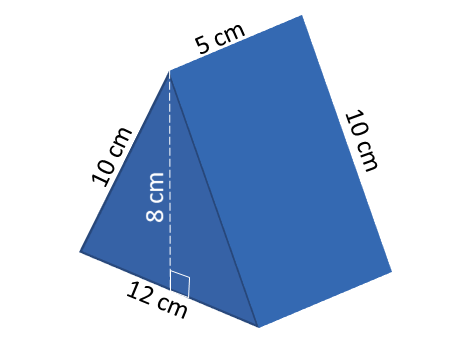

Find the surface area of this triangular prism.
Length: 5cm, Base: 12cm, Height: 8cm, Sloping edges: 10cm.

Shape 1

cm2

2

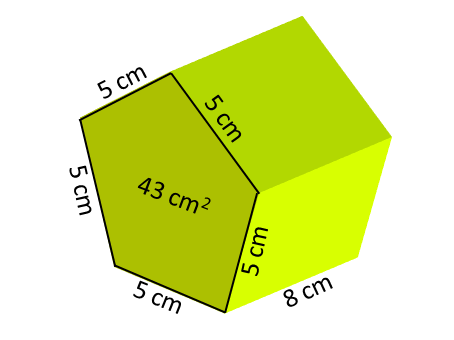

A pentagonal prism has a length of 8cm.
The area of its pentagonal faces is 43cm2 and the sides of the pentagons are each 5cm.
Find its surface area.

Shape 2

cm2

3

An octagonal prism has a length of 9.8cm.
The area of its octagonal faces is 278.9cm2 and the sides of the octagons are each 7.6cm.
Find its surface area correct to one decimal place.

Shape 3

cm2

4


Find the surface area of a triangular prism if the area of its cross section is 51cm2, its length is 40cm and the three sides of the triangular ends add up to 33cm.



cm2

5

The cross section of a semi-transparent prism is a right angled triangle as shown in the diagram. Calculate the surface area of the prism if AB = 16cm, BC = 12cm and CD = 16cm.

Shape 5

cm2

6

      The frame for a large tent is in the shape of an isosceles triangular prism.
The height of the tent is 2.2m, the width of the tent (at the triangular ends) is 4.6m, the sloping edges of the tent are each 3.18m an the length of the tent is 8.4m. Calculate the area of canvas needed for the tent (excluding the bottom of the prism as that is where the ground sheet goes). Give your answer in square metres to the nearest square metre.

Shape 6

cm2

7

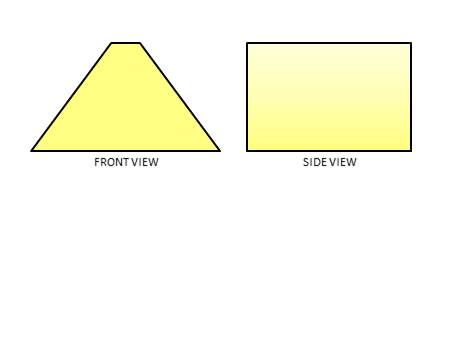

      Find the surface area of a trapezoidal prism based on the views drawn to scale below. Drag the ruler to measure the diagram, each length should be measured to the nearest centimetre.

Hold down the shift key [or shift] while you drag to rotate the ruler. Zoom into this web page to see the ruler more clearly.

Shape 7Ruler

cm2

Check

This is Surface Area level 3. You can also try:
Level 1 Level 2 Level 4 Level 5 Level 6 Level 7 Level 8 Level 9

Instructions

Try your best to answer the questions above. Type your answers into the boxes provided leaving no spaces. As you work through the exercise regularly click the "check" button. If you have any wrong answers, do your best to do corrections but if there is anything you don't understand, please ask your teacher for help.

When you have got all of the questions correct you may want to print out this page and paste it into your exercise book. If you keep your work in an ePortfolio you could take a screen shot of your answers and paste that into your Maths file.

Transum.org

This web site contains over a thousand free mathematical activities for teachers and pupils. Click here to go to the main page which links to all of the resources available.

Please contact me if you have any suggestions or questions.

Email address

Mathematicians are not the people who find Maths easy; they are the people who enjoy how mystifying, puzzling and hard it is. Are you a mathematician?

Comment recorded on the 24 May 'Starter of the Day' page by Ruth Seward, Hagley Park Sports College:

"Find the starters wonderful; students enjoy them and often want to use the idea generated by the starter in other parts of the lesson. Keep up the good work"

Comment recorded on the 1 May 'Starter of the Day' page by Phil Anthony, Head of Maths, Stourport High School:

"What a brilliant website. We have just started to use the 'starter-of-the-day' in our yr9 lessons to try them out before we change from a high school to a secondary school in September. This is one of the best resources on-line we have found. The kids and staff love it. Well done an thank you very much for making my maths lessons more interesting and fun."

Each month a newsletter is published containing details of the new additions to the Transum website and a new puzzle of the month.

The newsletter is then duplicated as a podcast which is available on the major delivery networks. You can listen to the podcast while you are commuting, exercising or relaxing.

Transum breaking news is available on Twitter @Transum and if that's not enough there is also a Transum Facebook page.

Featured Activity

Remainder Race

Remainder Race

A brilliant game involving chance and choice requiring an ability to calculate the remainder when a two digit number is divided by a single digit number. There are one and two player versions and the rules are inspired by the Royal Game of Ur.

Answers

There are answers to this exercise but they are available in this space to teachers, tutors and parents who have logged in to their Transum subscription on this computer.

A Transum subscription unlocks the answers to the online exercises, quizzes and puzzles. It also provides the teacher with access to quality external links on each of the Transum Topic pages and the facility to add to the collection themselves.

Subscribers can manage class lists, lesson plans and assessment data in the Class Admin application and have access to reports of the Transum Trophies earned by class members.

If you would like to enjoy ad-free access to the thousands of Transum resources, receive our monthly newsletter, unlock the printable worksheets and see our Maths Lesson Finishers then sign up for a subscription now:

Subscribe

Go Maths

Learning and understanding Mathematics, at every level, requires learner engagement. Mathematics is not a spectator sport. Sometimes traditional teaching fails to actively involve students. One way to address the problem is through the use of interactive activities and this web site provides many of those. The Go Maths page is an alphabetical list of free activities designed for students in Secondary/High school.

Maths Map

Are you looking for something specific? An exercise to supplement the topic you are studying at school at the moment perhaps. Navigate using our Maths Map to find exercises, puzzles and Maths lesson starters grouped by topic.

Teachers

If you found this activity useful don't forget to record it in your scheme of work or learning management system. The short URL, ready to be copied and pasted, is as follows:

Alternatively, if you use Google Classroom, all you have to do is click on the green icon below in order to add this activity to one of your classes.

It may be worth remembering that if Transum.org should go offline for whatever reason, there are mirror sites at Transum.com and Transum.info that contain most of the resources that are available here on Transum.org.

When planning to use technology in your lesson always have a plan B!

Do you have any comments? It is always useful to receive feedback and helps make this free resource even more useful for those learning Mathematics anywhere in the world. Click here to enter your comments.

Apple

©1997-2021 WWW.TRANSUM.ORG

© Transum Mathematics 1997-2021
Scan the QR code below to visit the online version of this activity.

This is a QR Code

https://Transum.org/go/?Num=264

Description of Levels

Close

Level 1 - Find the surface area of shapes made up of cubes.

Level 2 - Find the surface area of a variety of cuboids.

Level 3 - Find the surface area of a variety of prisms.

Level 4 - Find the surface area of a variety of cylinders.

Level 5 - Find the surface area of a variety of cones.

Level 6 - Find the surface area of a variety of pyramids.

Level 7 - Find the surface area of a variety of spheres.

Level 8 - Find the surface area of composite shapes.

Level 9 - Mixed, more challenging questions involving surface area.

Volume - Find the volume of basic solid shapes.

Exam Style Questions - A collection of problems in the style of GCSE or IB/A-level exam paper questions (worked solutions are available for Transum subscribers).

More on 3D Shapes including lesson Starters, visual aids, investigations and self-marking exercises.

Answers to this exercise are available lower down this page when you are logged in to your Transum account. If you don’t yet have a Transum subscription one can be very quickly set up if you are a teacher, tutor or parent.

Log in Sign up

Help Video

Surface Area Formulae

Cube: \(6s^2\) where \(s\) is the length of one edge.

Cuboid: \(2(lw + lh + wh)\) where \(l\) is the length, \(w\) is the width and \(h\) is the height of the cuboid.

Cylinder: \(2\pi rh + 2\pi r^2\) where \(h\) is the height (or length) of the cylinder and \(r\) is the radius of the circular end.

Cone: \(\pi r(r+l)\) where \(l\) is the distance from the apex to the rim of the circle (sloping height) of the cone and \(r\) is the radius of the circular base.

Cone: \(\pi r(r+\sqrt{h^2+r^2})\) where \(h\) is the height of the cone and \(r\) is the radius of the circular base.

Square based pyramid: \(s^2+2s\sqrt{\frac{s^2}{4}+h^2}\) where \(h\) is the height of the pyramid and \(s\) is the length of a side of the square base.

Rectangular based pyramid: \(lw+l\sqrt{\frac{w^2}{4}+h^2}+w\sqrt{\frac{l^2}{4}+h^2}\) where \(h\) is the height of the pyramid, \(l\) is the length of the base and \(w\) is the width of the base.

Sphere: \(4\pi r^2\) where \(r\) is the radius of the sphere.

Prism: Double the area of the cross section added to the product of the length and the perimeter of the cross section.
