# Box Plots

## An exercise on reading and drawing box-and-whisker diagrams which represent statistical data.

##### Level 1Level 2Level 3Exam-StyleDescriptionHelpMore Statistics

This is level 3: drawing box plots You can earn a trophy if you get at least 7 questions correct.

1. Drag the circles to create a box plot representing the number of minutes patients spent in a doctor's waiting room if the minimum waiting time is 6 minutes, the maximum is 31 minutes, the median time is 18 minutes, the lower quartile is 8 minutes and the upper quartile is 27 minutes.
2. The following is a list of times in minutes spent on social media by members of a chess team.
49, 30, 82, 39, 67, 44, 56.
Drag the circles to create a box plot representing this data on the grid above.
3. The following is a list of the lengths in metres of a tortoise's daily walks.
75, 84, 65, 94, 38, 74, 54, 57, 85, 67, 47.
Drag the circles to create a box plot representing this data on the grid above.
4. The following is a list of the number of times 15 people checked their email accounts in one day.
7, 28, 19, 48, 42, 9, 9, 21, 38, 19, 50, 17, 25, 8, 8.
Drag the circles to create a box plot representing this data on the grid above.
5. The following stem and leaf diagram shows the number of times 19 people said 'Happy New Year' on 1st January 2022.
1 0 1 3 5 1 3 4 7 0 0 2 3 3 6 8 9 2 3 3
Drag the circles to create a box plot representing this data on the grid above.
6. The following stem and leaf diagram shows the number of plastic bottles found in each of 23 bags of rubbish collected during a beach clean up operation.
2 5 6 0 3 6 7 9 1 6 9 2 6 9 1 3 5 9 1 5 8 2 3 3
Drag the circles to create a box plot representing this data on the grid above.
7. In Transum High School there are 27 classes. The following table show the number of students in those classes as a frequency table.
Class sizeFrequency
212
224
232
240
254
264
272
280
290
300
311
321
331
342
354
Drag the circles to create a box plot representing this data on the grid above.
8. The marks earned by 79 pupils in Year 11 of Transum High School in a mid-year exam are shown in the frequency table below.
MarkFrequency
523
531
541
552
561
572
582
594
606
614
628
6310
649
657
666
671
682
691
704
713
721
730
740
751
Drag the circles to create a box plot representing this data on the grid above.

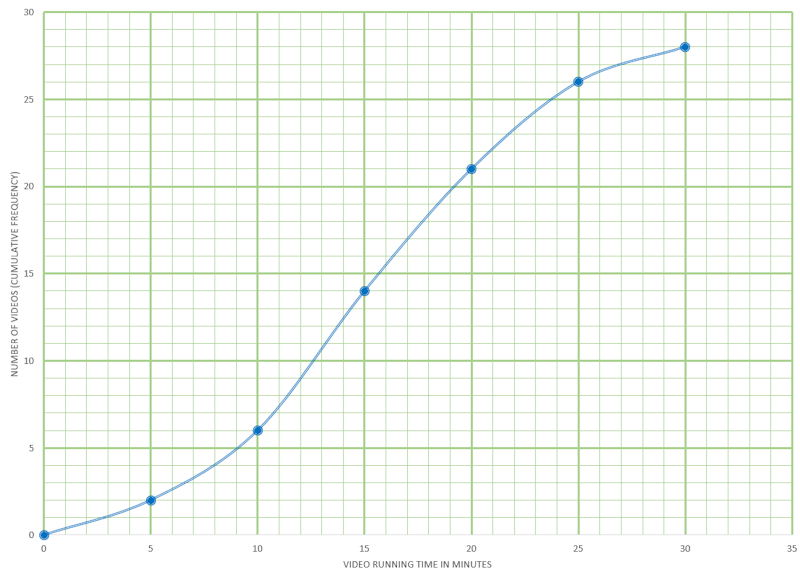

9. The lengths (running time) of some instructional videos are shown in the cumulative frequency diagram. The shortest video lasted only three minutes.Drag the circles to create a box plot representing this data on the grid above. The times used in your box plot should be rounded to the nearest minute.
10. The following cumulative frequency graph shows the length of time in minutes, visitors watched an octopus swimming around a tank at an aquarium.Drag the circles to create a box plot representing this data on the grid above. Take the minimum time to be zero minutes and the other times used in your box plot should be rounded to the nearest minute.
Check

This is Box Plots level 3. You can also try:
Level 1 Level 2

## Instructions

Try your best to answer the questions above. Type your answers into the boxes provided leaving no spaces. As you work through the exercise regularly click the "check" button. If you have any wrong answers, do your best to do corrections but if there is anything you don't understand, please ask your teacher for help.

When you have got all of the questions correct you may want to print out this page and paste it into your exercise book. If you keep your work in an ePortfolio you could take a screen shot of your answers and paste that into your Maths file.
