# Vectors

## An online exercise on addition and subtraction of vectors and multiplication of a vector by a scalar.

##### MenuConnectLevel 1Level 2Level 3Level 4Level 5ExamHelpMore

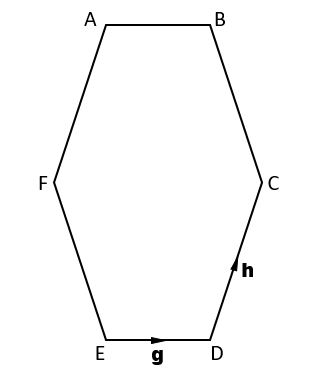

 The diagram shows an irregular hexagon ABCDEF which has vertical and horizontal lines of symmetry. Opposite sides of the hexagon are parallel. $$\overrightarrow{ED} = \pmb{g}$$ $$\overrightarrow{DC} = \pmb{h}$$ The diagram is not to scale.
 1 Let's begin with a nice easy, straight-forward question. Choose the option below which shows the vector representation of $$\overrightarrow{EC}$$ in terms of $$\pmb{g}$$ and $$\pmb{h}$$. A.     $$\pmb{g+h}$$ B.     $$\pmb{g-h}$$ C.     $$\pmb{h-g}$$ D.     $$\pmb{2g}$$ E.     $$\pmb{g+\frac12 h}$$ ✓ ✗ 2 Find $$\overrightarrow{BF}$$ in terms of $$\pmb{g}$$ and $$\pmb{h}$$. A.     $$\pmb{g+h}$$ B.     $$\pmb{g-h}$$ C.     $$\pmb{-g-h}$$ D.     $$\pmb{h-g}$$ E.     $$\pmb{h}$$ ✓ ✗ 3 The ratio of FC to ED is 5:2. Find $$\overrightarrow{FC}$$ in terms of $$\pmb{g}$$. A.     $$\pmb{5g}$$ B.     $$\pmb{2g}$$ C.     $$\pmb{7g}$$ D.     $$\pmb{\frac{2}{5}g}$$ E.     $$\pmb{\frac{5}{2}g}$$ ✓ ✗ 4 Find $$\overrightarrow{EF}$$ in terms of $$\pmb{g}$$ and $$\pmb{h}$$. A.     $$\pmb{2h-3g}$$ B.     $$\pmb{h-\frac{3}{2}g}$$ C.     $$\pmb{3h-2g}$$ D.     $$\pmb{h-\frac{2}{3}g}$$ E.     $$\pmb{7h-5g}$$ ✓ ✗ 5 The point M is the midpoint of DC. Find $$\overrightarrow{EM}$$ in terms of $$\pmb{g}$$ and $$\pmb{h}$$. A.     $$\pmb{g + \frac12 h}$$ B.     $$\pmb{h + \frac12 g}$$ C.     $$\pmb{2g + h}$$ D.     $$\pmb{h + 2g}$$ E.     $$\pmb{\frac12 g + \frac12 h}$$ ✓ ✗ 6 The point N lies on ED such that the ratio of EN to ND is 1:2. Find $$\overrightarrow{CN}$$ in terms of $$\pmb{g}$$ and $$\pmb{h}$$. A.     $$\pmb{-h -g + \frac12 g}$$ B.     $$\pmb{-3g - 2h}$$ C.     $$\pmb{2g - 2h}$$ D.     $$\pmb{-h-\frac23 g}$$ E.     $$\pmb{-h-\frac12 g}$$ ✓ ✗ 7 The point P lies on FA such that the ratio FP to PA is 4:3. Find $$\overrightarrow{CP}$$ in terms of $$\pmb{g}$$ and $$\pmb{h}$$. A.     $$\pmb{\frac{3}{4}g + \frac{2}{5}h}$$ B.     $$\pmb{\frac{4}{3}g - \frac{5}{2}h}$$ C.     $$\pmb{\frac{4}{7}g + \frac{5}{2}h}$$ D.     $$\pmb{\frac{4}{7}g - \frac{5}{2}h}$$ E.     $$\pmb{\frac{4}{7}h - \frac{5}{2}g}$$ ✓ ✗ 8 Find $$\overrightarrow{NP}$$ in terms of $$\pmb{g}$$ and $$\pmb{h}$$. A.     $$\pmb{11(\frac{h}{7} - \frac{g}{6})}$$ B.     $$\pmb{11(\frac{g}{7} - \frac{h}{6})}$$ C.     $$\pmb{11(\frac{g}{7} + \frac{h}{6})}$$ D.     $$\pmb{11(\frac{h}{7} + \frac{g}{6})}$$ E.     $$\pmb{\frac{11}{7}h + \frac{11}{6}g}$$ ✓ ✗ 9 Find $$\overrightarrow{PM}$$ in terms of $$\pmb{g}$$ and $$\pmb{h}$$. A.     $$\pmb{5(\frac{g}{2}+\frac{3h}{14})}$$ B.     $$\pmb{5(\frac{g}{2}-\frac{3h}{14})}$$ C.     $$\pmb{\frac{5g}{2}+\frac{15h}{14}}$$ D.     $$\pmb{5(\frac{h}{2}+\frac{3g}{14})}$$ E.     $$\pmb{\frac{5h}{2}+\frac{15g}{14}}$$ ✓ ✗ 10 The line AB is extended to X such that the ratio AB to AX is 2:7. Find $$\overrightarrow{EX}$$ in terms of $$\pmb{g}$$ and $$\pmb{h}$$. A.     $$\pmb{\frac{2}{7}h + \frac{2}{5}g}$$ B.     $$\pmb{7h-5g}$$ C.     $$\pmb{-h-\frac12 g}$$ D.     $$\pmb{\frac{5h}{2}+\frac{15g}{14}}$$ E.     $$\pmb{\frac{5}{2}g + 2h}$$ ✓ ✗
Check

This is Vectors level 5. You can also try:
Vector Connectors Level 1 Level 2 Level 3 Level 4

## Instructions

Try your best to answer the questions above. Type your answers into the boxes provided leaving no spaces. As you work through the exercise regularly click the "check" button. If you have any wrong answers, do your best to do corrections but if there is anything you don't understand, please ask your teacher for help.

When you have got all of the questions correct you may want to print out this page and paste it into your exercise book. If you keep your work in an ePortfolio you could take a screen shot of your answers and paste that into your Maths file.
