## Exam-Style Question on Plans and Elevations## A mathematics exam-style question with a worked solution that can be revealed gradually |

Question id: 315. This question is similar to one that appeared on a GCSE Higher paper in 2017. The use of a calculator is allowed.

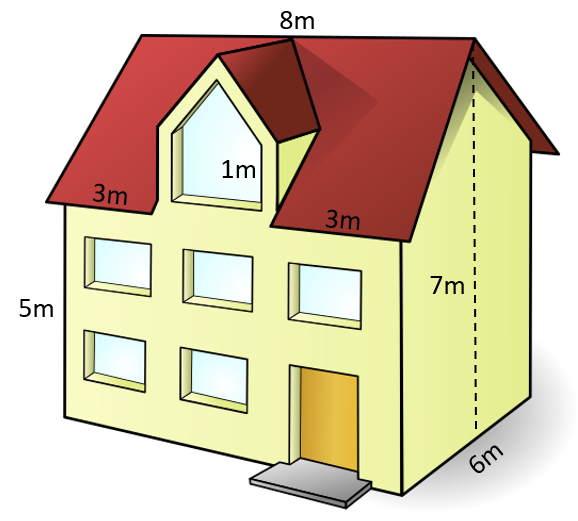

On centimetre squared or graph paper draw the front elevation, side elevation and plan view of this house using a scale of 1:100.

Do not include the door mat in your diagrams but do show the doors and windows on your front elevation making estimates of their size and positioning.
