Sine, cosine and tangent ratios are used to find sides and angles in right-angled triangles.

  Menu   Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 Level 8 Exam-Style Help More

This is level 3: using the tangent ratio to find a side (10 questions). You will be awarded a trophy if you get at least 7 correct and you do this activity online.  Give your answers correct to three significant figures. For the first six questions find the value of \(x\). Diagrams are not to scale.


Correct Wrong


Correct Wrong


Correct Wrong


Correct Wrong


Correct Wrong


Correct Wrong

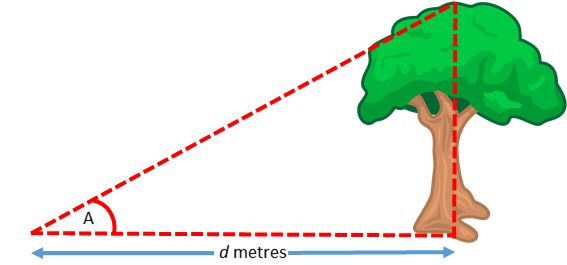

Find distance, d, if the height of the tree is 5.1m and the angle marked A is 28°.

d = m Correct Wrong


In triangle ABC the angle at B is 90°. If BC = 18mm and the angle at C is 40° find the length of the side AB.

AB = mm Correct Wrong


In triangle DEF the angle at E is 90°. If DE = 39m and the angle at F is 57° find the length of the side FE.

FE = m Correct Wrong


No calculatorThe tangent ratio of 45 degrees is one. Find the length of the opposite side of a right-angled triangle if the side adjacent the angle of 45° is of length 176cm.

= cm Correct Wrong


This is Trigonometry level 3. You can also try:
Level 1 Level 2 Level 4 Level 5 Level 6 Level 7 Level 8


Try your best to answer the questions above. Type your answers into the boxes provided leaving no spaces. As you work through the exercise regularly click the "check" button. If you have any wrong answers, do your best to do corrections but if there is anything you don't understand, please ask your teacher for help.

When you have got all of the questions correct you may want to print out this page and paste it into your exercise book. If you keep your work in an ePortfolio you could take a screen shot of your answers and paste that into your Maths file.
