Trapezium Rule

Practise using the trapezium rule to find an approximate value for the area under a curve.

Menu Level 1 Level 2 Level 3 Exam-Style Help Calculus

Answers with more than three significant figures should be rounded to three significant figures.

This exercise will take you step by step through the process of approximating the area of the curve defined by the following function:

$$y=\frac{24}{\left(x+5\right)}+3$$

The area is required between \(x=1\) and \(x=5\) and will be found by splitting this area into 4 regions that can be roughly drawn as trapeziums.

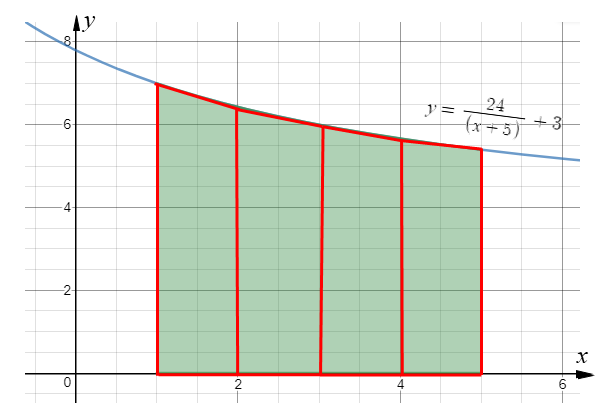

Diagram 1

Complete the following table to show the ordinates, the lengths of the vertical sides of the trapeziums.

\(x\)12345
\(y\) Correct Wrong Correct Wrong Correct Wrong Correct Wrong Correct Wrong

The four trapeziums can be numbered one to four from left to right. Calculate the areas of each of the trapeziums:

Trapeziumnumber 1number 2number 3number 4
Area Correct Wrong Correct Wrong Correct Wrong Correct Wrong

Add the areas together to find the total area of the green area under the curve.

Correct Wrong



Check

This is Trapezium Rule level 1. You can also try:
Level 2 Level 3

Instructions

Try your best to answer the questions above. Type your answers into the boxes provided leaving no spaces. As you work through the exercise regularly click the "check" button. If you have any wrong answers, do your best to do corrections but if there is anything you don't understand, please ask your teacher for help.

When you have got all of the questions correct you may want to print out this page and paste it into your exercise book. If you keep your work in an ePortfolio you could take a screen shot of your answers and paste that into your Maths file.

Transum.org

This web site contains over a thousand free mathematical activities for teachers and pupils. Click here to go to the main page which links to all of the resources available.

Please contact me if you have any suggestions or questions.

Email address

Mathematicians are not the people who find Maths easy; they are the people who enjoy how mystifying, puzzling and hard it is. Are you a mathematician?

Comment recorded on the 24 May 'Starter of the Day' page by Ruth Seward, Hagley Park Sports College:

"Find the starters wonderful; students enjoy them and often want to use the idea generated by the starter in other parts of the lesson. Keep up the good work"

Comment recorded on the 28 May 'Starter of the Day' page by L Smith, Colwyn Bay:

"An absolutely brilliant resource. Only recently been discovered but is used daily with all my classes. It is particularly useful when things can be saved for further use. Thank you!"

Each month a newsletter is published containing details of the new additions to the Transum website and a new puzzle of the month.

The newsletter is then duplicated as a podcast which is available on the major delivery networks. You can listen to the podcast while you are commuting, exercising or relaxing.

Transum breaking news is available on Twitter @Transum and if that's not enough there is also a Transum Facebook page.

Featured Activity

Online Logo

Online Logo

An opportunity for students to write a computer program. There is nothing to download, all of the interaction takes place in the browser. Great for understanding angles and the properties of shapes.

Answers

There are answers to this exercise but they are available in this space to teachers, tutors and parents who have logged in to their Transum subscription on this computer.

A Transum subscription unlocks the answers to the online exercises, quizzes and puzzles. It also provides the teacher with access to quality external links on each of the Transum Topic pages and the facility to add to the collection themselves.

Subscribers can manage class lists, lesson plans and assessment data in the Class Admin application and have access to reports of the Transum Trophies earned by class members.

If you would like to enjoy ad-free access to the thousands of Transum resources, receive our monthly newsletter, unlock the printable worksheets and see our Maths Lesson Finishers then sign up for a subscription now:

Subscribe

Go Maths

Learning and understanding Mathematics, at every level, requires learner engagement. Mathematics is not a spectator sport. Sometimes traditional teaching fails to actively involve students. One way to address the problem is through the use of interactive activities and this web site provides many of those. The Go Maths page is an alphabetical list of free activities designed for students in Secondary/High school.

Maths Map

Are you looking for something specific? An exercise to supplement the topic you are studying at school at the moment perhaps. Navigate using our Maths Map to find exercises, puzzles and Maths lesson starters grouped by topic.

Teachers

If you found this activity useful don't forget to record it in your scheme of work or learning management system. The short URL, ready to be copied and pasted, is as follows:

Alternatively, if you use Google Classroom, all you have to do is click on the green icon below in order to add this activity to one of your classes.

It may be worth remembering that if Transum.org should go offline for whatever reason, there are mirror sites at Transum.com and Transum.info that contain most of the resources that are available here on Transum.org.

When planning to use technology in your lesson always have a plan B!

Do you have any comments? It is always useful to receive feedback and helps make this free resource even more useful for those learning Mathematics anywhere in the world. Click here to enter your comments.

Apple

©1997-2021 WWW.TRANSUM.ORG

© Transum Mathematics 1997-2021
Scan the QR code below to visit the online version of this activity.

This is a QR Code

https://Transum.org/go/?Num=885

Description of Levels

Close

Close

Level 1 - A structured single question with many parts

Level 2 - Five practice questions

Level 3 - Questions requiring a little more thought

Exam-Style - Have a go at an IB/A-level exam-style questions (worked solutions are available for Transum subscribers).

Calculus a collection of lesson Starters, visual aids, investigations and self-marking exercises.

Answers to this exercise are available lower down this page when you are logged in to your Transum account. If you don’t yet have a Transum subscription one can be very quickly set up if you are a teacher, tutor or parent.

Log in Sign up

Example

The video above comes from Revision Village


Sometimes the area under a curve cannot be found by integration. In these cases a method to approximate the area under the curve called the trapezium rule can be used.

The rule divides the area under a curve into trapeziums, calculates their areas, then sums these areas to get an approsimation of the total area.

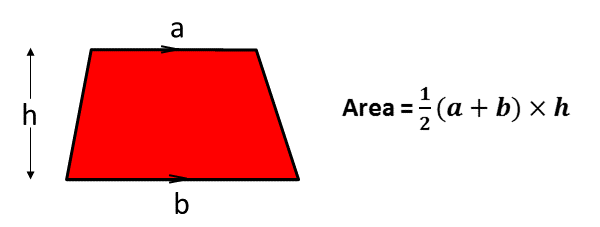

Area of a trapezium

Formula for the area of a trapezium

Trapezium Rule

If the width of each interval is \(h\) and the y values (ordinates) are denoted as \(y_0, y_1, y_2, y_3 ...\) then the formula for finding the sum of the areas of these trapeziums is

$$ \frac12 h ((y_0 + y_n) + 2(y_1 + y_2 + ... + y_{n-1})) $$

where n is the number of intervals.

Note that the number or ordinates is always one more than the number of intervals.

If the lower bound of the required area is \(p\) and the upper bound is \(q\) then

$$ h= \frac{q-p}{n} $$

The more trapeziums the area is divided into the more accurate the estimate.

When the gradient of the graph is increasing over the given interval the area given by the trapezium rule will be an overestimate of the actual area.

When the gradient of the graph is decreasing over the given interval the area given by the trapezium rule will be an underestimate of the actual area.
