Exam-Style Questions on Angles

Problems on Angles adapted from questions set in previous exams.

1.

GCSE Higher

The exterior angle of a regular polygon is 72°

What is the name of the regular polygon?


2.

GCSE Higher

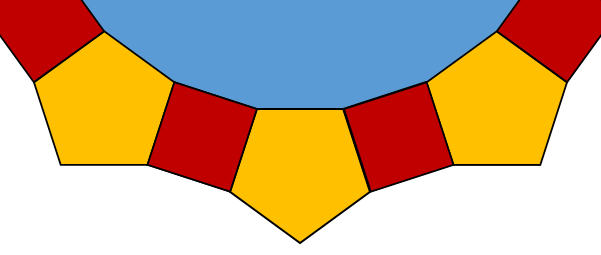

A number of regular pentagons and squares are arranged around the outside of a large blue regular polygon. Just the lower part of the arrangement is shown below.

How many sides does the large blue regular polygon have?

Diagram

3.

GCSE Higher

In the following diagram AD is parallel to CE and AD = CD. Angle AFD is a right angle.

The diagram is not drawn to scale.

Diagram

Calculate the size of angle DCE.


4.

IGCSE Extended

The diagrams are not drawn to scale

Diagram

ABCDEF is a hexagon with AB parallel to ED and BC parallel to FE.

GFE and GABH are straight lines. Angle CBH = 70o and angle EFA = 90o.

Calculate the values of:

(a) \(p\);

(b) \(q\);

(c) \(t\);

(d) \(x\).

K, P, J and N are points on a circle and KN = NP.

KJ is a diameter and LKM is the tangent to the circle at K.

Angle LKN = 59o.

Find the values of:

(e) \(y\);

(f) \(z\).


5.

GCSE Higher

B, C, D and E are points on the circumference of a circle, centre O.

BD is a diameter of the circle and the diagram is not drawn to scale.

Diagram

(a) Find the size of angle DBE and give a reason for your answer.

(b) Find the size of angle DBC and give a reason for your answer.


6.

IGCSE Extended
Circle Angle Diagram

In the diagram above, not drawn to scale, A, B and C are points on a circle, centre O. TA is a tangent to the circle at A and OBT is a straight line. AC is a diameter and angle OTA = 28°.

Calculate

(a) angle AOT

(b) angle ACB

(c) angle ABT


7.

GCSE Higher

PQRS is a rhombus and C is the midpoint of QS.

The angle QRS is 120o and A is the point on QS such that PA = AQ.

Calculate the size of angle CPA.

Rhombus


The exam-style questions appearing on this site are based on those set in previous examinations (or sample assessment papers for future examinations) by the major examination boards. The wording, diagrams and figures used in these questions have been changed from the originals so that students can have fresh, relevant problem solving practice even if they have previously worked through the related exam paper.

The solutions to the questions on this website are only available to those who have a Transum Subscription.
