Construct the diagrams from the given information then check your accuracy.

Level 1 Level 2 Description More Construction

This is level 1; Construct the diagrams using a ruler and pair of compasses. Give your answers in centimetres to one decimal place.

1. At the top of a page draw a horizontal straight line, AB, 13cm long.
Point C lies on this line exactly 6cm from the point A.
Draw the point D further down the page such that AD is 12cm
and BD is 11cm.
Measure the distance CD.

cm Correct Wrong

2. In the centre of a page draw a vertical line, AC, that is 15cm long.
DB is the perpendicular bisector of AC and AC is the perpendicular bisector of DB.
DB is 13cm long.
Measure the length of one side of rhombus ABCD.

cm Correct Wrong

3. Draw triangle ABC such that:
AB is 10.7cm, BC is 12.8cm and CA is 13cm.
Use compasses and ruler to bisect the angle BÂC and extend this bisector until it reaches line BC at point D.
Measure the distance CD.

cm Correct Wrong

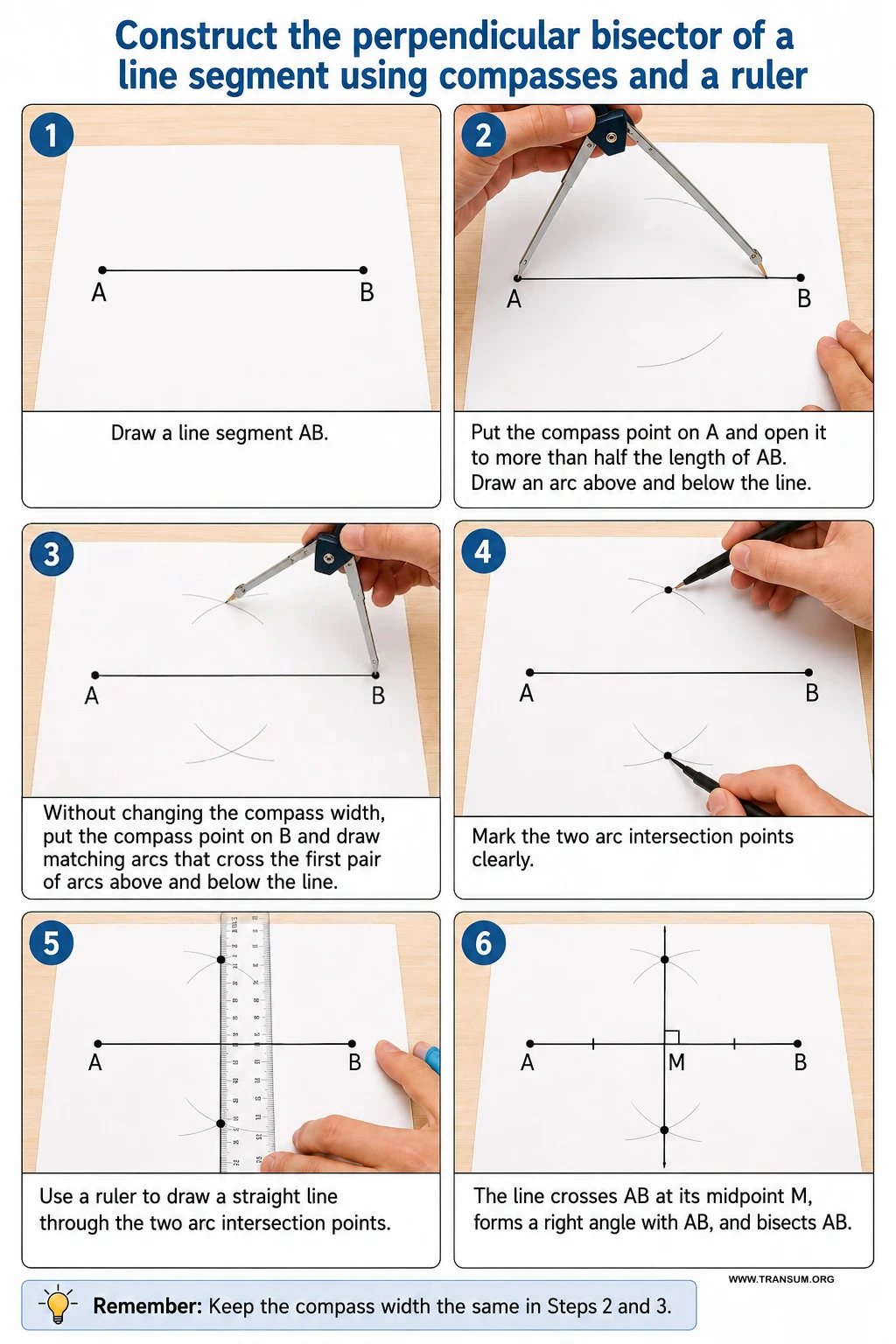

4. Draw the perpendicular bisector of a 12.6cm horizontal line and use it to draw an isoceles triangle of height 11.3cm.
What is the length of either of the two sloping sides of the triangle.

cm Correct Wrong

5. XY is the diameter of a semicircle. XY is of length 13.7cm.
The point Z lies on the curved side of the semicircle such that XZ is 7.8cm.
What is the distance from Z to Y?

cm Correct Wrong

This is Constructions level 1. You can also try:
Level 2


Try your best to answer the questions above. Type your answers into the boxes provided leaving no spaces. As you work through the exercise regularly click the "check" button. If you have any wrong answers, do your best to do corrections but if there is anything you don't understand, please ask your teacher for help.

When you have got all of the questions correct you may want to print out this page and paste it into your exercise book. If you keep your work in an ePortfolio you could take a screen shot of your answers and paste that into your Maths file.
