Plans and Elevations

Interpret plans and elevations of three dimensional shapes.

Level 1 Level 2 Level 3 Level 4 Description Help More 3D Activities

This is level 3; Eight artists drew sketches of three objects from different positions which you must identify.

Playing Cards

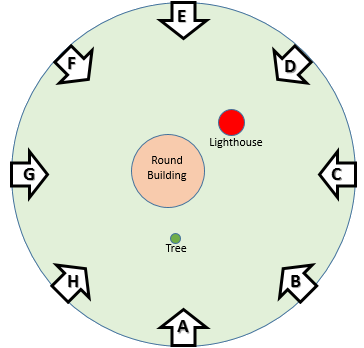

Identify the positions of the artists who drew the following sketches.

View of park
Correct Wrong
View of park
Correct Wrong
View of park
Correct Wrong
View of park
Correct Wrong
View of park
Correct Wrong
View of park
Correct Wrong
View of park
Correct Wrong
View of park
Correct Wrong
Check
